0.1mm*200 Multi Strands Twisted Enameled Copper Litz Wire

اطلاعات پایه
محل منبع: چین
نام تجاری: RVYUAN
گواهی: ISO9001/ISO14001 /UL/SGS
شماره مدل: urStc
مقدار حداقل تعداد سفارش: 10 کیلوگرم
قیمت: negotiable
جزئیات بسته بندی: قرقره با کارتن
زمان تحویل: 2-15 روز کاری
شرایط پرداخت: مذاکره
قابلیت ارائه: خواسته خود را برآورده کنید
اطلاعات تکمیلی
Diameter: 0.1mm Temperature: 155/180
گواهی: IEC/NEMA/JIS/RoHS/ISO AWG SIZE: 38
Conductor: Copper Strands: 200
Breakdown voltage: 1300 Insulation: UEW
Product name: 0.1mm*200 Multi Strands Twisted Enameled Copper Litz Wire Key word: 0.1mm*200 Multi Strands Twisted Enameled Copper Litz Wire
برجسته کردن:

200 Twisted Enameled Litz Wire,0.1mm Enameled Litz Wire,Multi Strands Enameled Litz Wire

,

0.1mm Enameled Litz Wire

,

Multi Strands Enameled Litz Wire


توضیحات محصول

0.1mm*200 Multi Strands Twisted Enameled Copper Litz Wire



One of the great benefits of our Litz wire is its flexibility in strand count. With strand counts ranging from 2 strands up to 12,500 strands, you can tailor the wire to the exact needs of your project. This flexibility ensures optimal performance during transformer winding, as strand count significantly affects the efficiency and effectiveness of the winding process. By choosing our Litz wire, you can ensure your transformer operates at peak performance, minimizing energy losses and maximizing output power.



Outgoing test of stranded wire Spec: 0.1x200 Model: 2USTC-F
Item Standard Test result
Outer conductor diameter(mm) 0.107-0.125 0.110-0.114
Conductor diameter(mm) 0.10±0.003 0.0980-0.10
Overall diameter (mm) Max.1.98 1.75-1.85
Pitch(mm) 29±5
Max resistance (Ω/m at20℃) Max. 0.01191 0.01088
Breakdown voltage Mini (V) 1100 3000

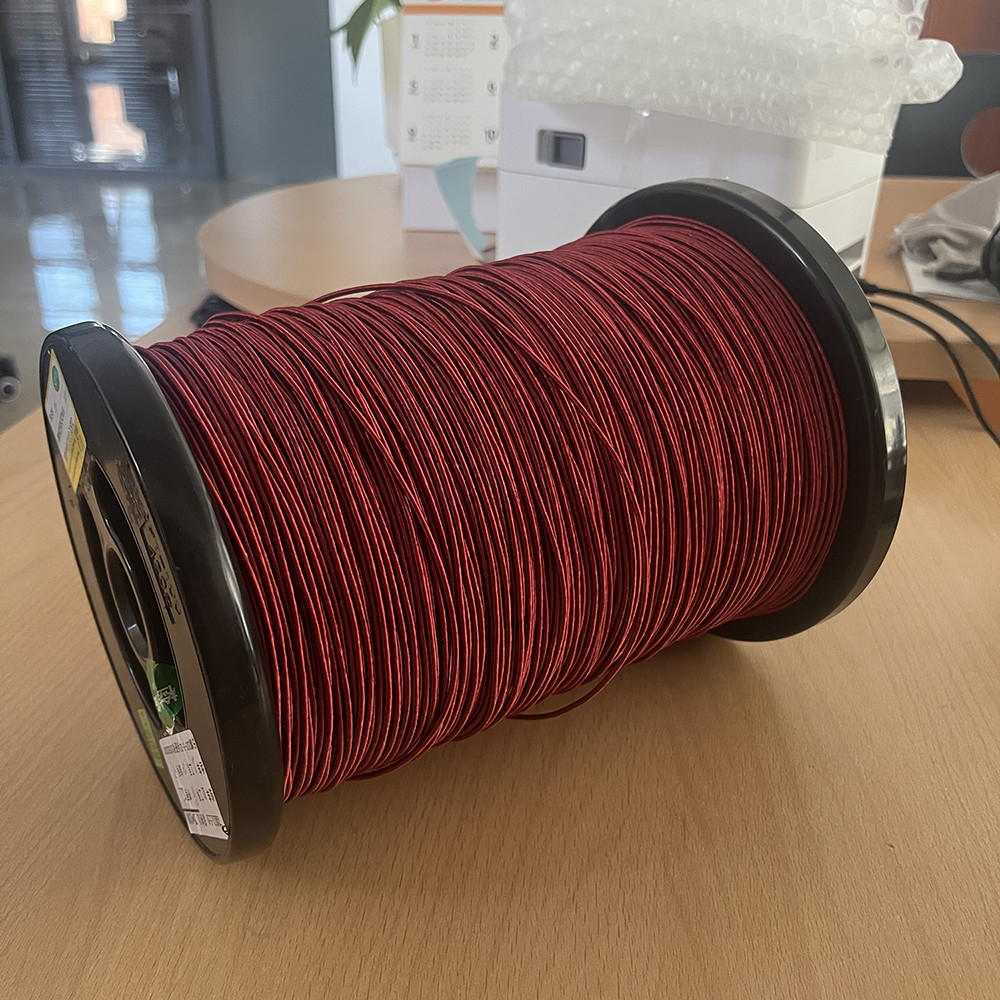

0.1mm*200 Multi Strands Twisted Enameled Copper Litz Wire 00.1mm*200 Multi Strands Twisted Enameled Copper Litz Wire 1
