قطر: | 0.071 میلی متر | درجه حرارت: | 155 |
---|---|---|---|
گواهی: | IEC/NEMA/JIS/RoHS/ISO | هادی: | مس |
رشته ها: | 250 | ولتاژ خرابی: | 1300 |
عایق: | UEW | نام محصول: | 2udtc-f 0.071mmx250 سیم ابریشمی طبیعی پوشیده از سیم لیتز |
کلمه کلیدی: | 2udtc-f 0.071mmx250 سیم ابریشمی طبیعی پوشیده از سیم لیتز | ||
برجسته کردن: | natural silk litz wire,0.071mm silk covered wire,250 natural silk litz,0.071mm silk covered wire,250 natural silk litz |
Attribute | Value |
---|---|
Diameter | 0.071mm |
Temperature | 155 |
Certification | IEC/NEMA/JIS/RoHS/ISO |
Conductor | Copper |
Strands | 250 |
Breakdown voltage | 1300 |
Insulation | UEW |

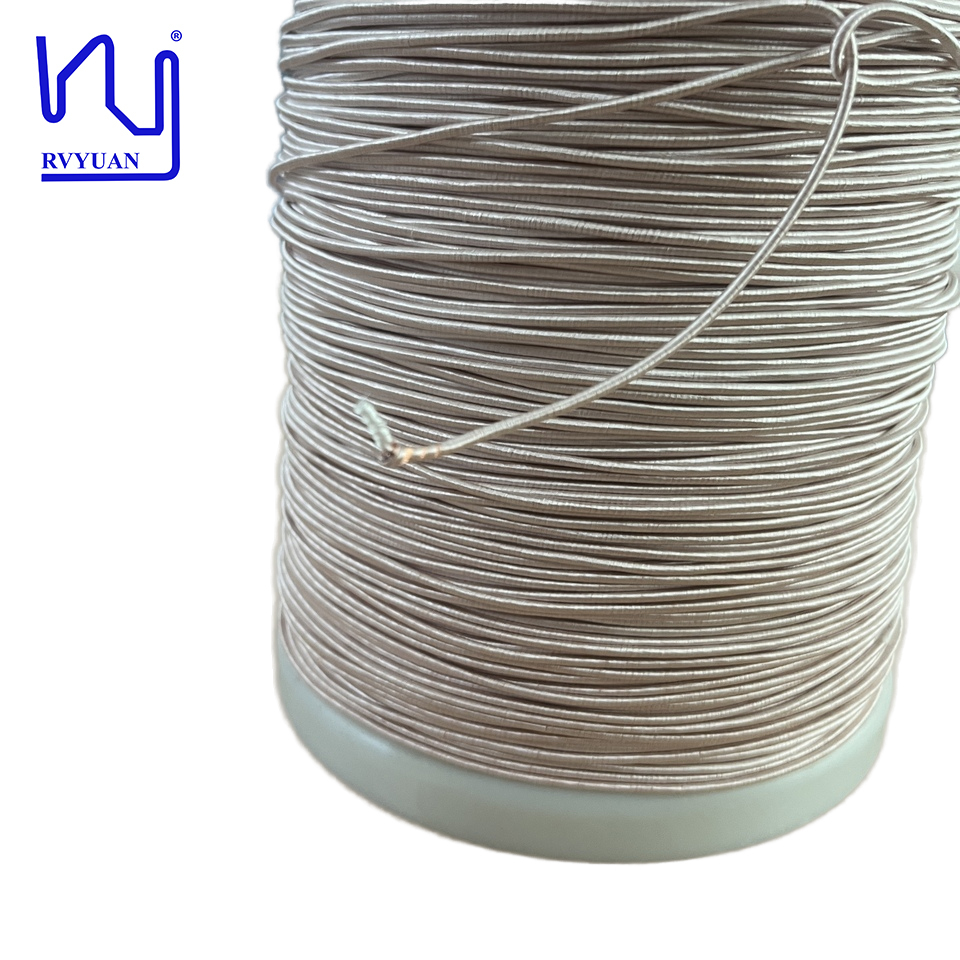

We proudly introduce our premium Silk covered Litz Wire, a product meticulously crafted to meet the specific needs of our customers. This exceptional wire features a single 0.071mm enameled silver wire, finely twisted into 250 strands. Elegantly encased in natural silk, it not only looks great but also enhances performance. Our Silk covered Litz Wire is particularly well-suited for transformer winding and voice coil wire production, where precision and reliability are crucial.
Item | Technical requests | Test value 1 | Test value 2 |
---|---|---|---|
Conductor Diameter (mm) | 0.076-0.084 | 0.079 | 0.080 |
Single wire diameter (mm) | 0.071±0.003 | 0.068 | 0.070 |
O.D. (mm) | Max. 1.85 | 1.57 | 1.68 |
Resistance Ω/m (20℃) | Max. 0.01196 | 0.01815 | 0.01812 |
Breakdown Voltage V | 950 | 3100 | 3000 |
Pitch mm | 29± 5 | √ | √ |
No. of strands | 250 | √ | √ |
