Customized silk covered litz wire 0.025mm-0.5mm Stranded Copper Litz Wire for Transformer

اطلاعات پایه
محل منبع: چین
نام تجاری: RVYUAN
گواهی: ISO9001/ISO14001 /UL/SGS
شماره مدل: urStc
مقدار حداقل تعداد سفارش: 10 کیلوگرم
قیمت: negotiable
جزئیات بسته بندی: قرقره با کارتن
زمان تحویل: 2-15 روز کاری
شرایط پرداخت: T/ T/ PayPal
قابلیت ارائه: تقاضای خود را برآورده کنید
اطلاعات تکمیلی
قطر: 0.071 میلی متر درجه حرارت: 155
گواهی: IEC/NEMA/JIS/RoHS/ISO هادی: مس
رشته: 250 ولتاژ خرابی: 1300
عایق: ایه نام محصول: سیم لیتز پوشیده از ابریشم سفارشی 0.025mm-0.5mm رشته مس لیتز برای ترانسفورماتور
کلمه کلیدی: سیم لیتز پوشیده از ابریشم سفارشی 0.025mm-0.5mm رشته مس لیتز برای ترانسفورماتور
برجسته کردن:

custom silk litz wire,stranded copper litz wire,transformer litz wire

,

stranded copper litz wire

,

transformer litz wire


توضیحات محصول

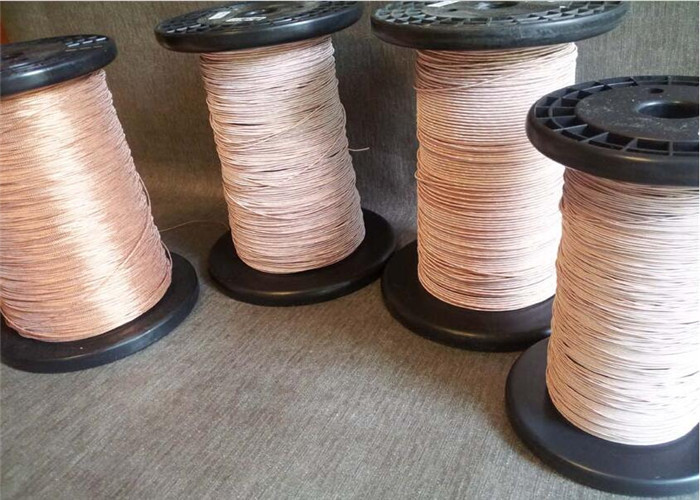

Customized Silk Covered Litz Wire 0.025mm-0.5mm Stranded Copper Litz Wire for Transformer
Our company specializes in providing custom silk covered litz wire, with single wire sizes ranging from 0.025mm to 0.5mm. We offer a wide range of strand counts, from single-strand to 13,000 strands, ensuring that we can meet your specific needs. In addition to silk-covered litz wire, we also supply taped litz wire and flat taped litz wire. Our products are meticulously crafted to meet your system requirements, ensuring optimal performance and reliability. With a commitment to quality and customization, we work closely with our clients to deliver litz wire solutions that perfectly align with their applications. Trust us to provide the ideal litz wire tailored to your specifications.
Product Specifications
Attribute Value
Diameter 0.071mm
Temperature 155
Certification IEC/NEMA/JIS/RoHS/ISO
Conductor Copper
Strands 250
Breakdown voltage 1300
Insulation UEW
Technical Specifications
Item Technical requests Test value 1 Test value 2
Conductor Diameter (mm) 0.076-0.084 0.079 0.080
Single wire diameter (mm) 0.071±0.003 0.068 0.070
O.D. (mm) Max. 1.85 1.57 1.68
Resistance Ω/m (20℃) Max. 0.01196 0.01815 0.01812
Breakdown Voltage V 950 3100 3000
Pitch mm 29± 5
No. of strands 250
Explore the endless possibilities of our natural silk-covered litz wire and experience the extraordinary experience of working with a trusted industry leader. Contact us today to discuss your needs and let us create the perfect wire solution for your next project.
Customized silk covered litz wire 0.025mm-0.5mm Stranded Copper Litz Wire for Transformer 0
