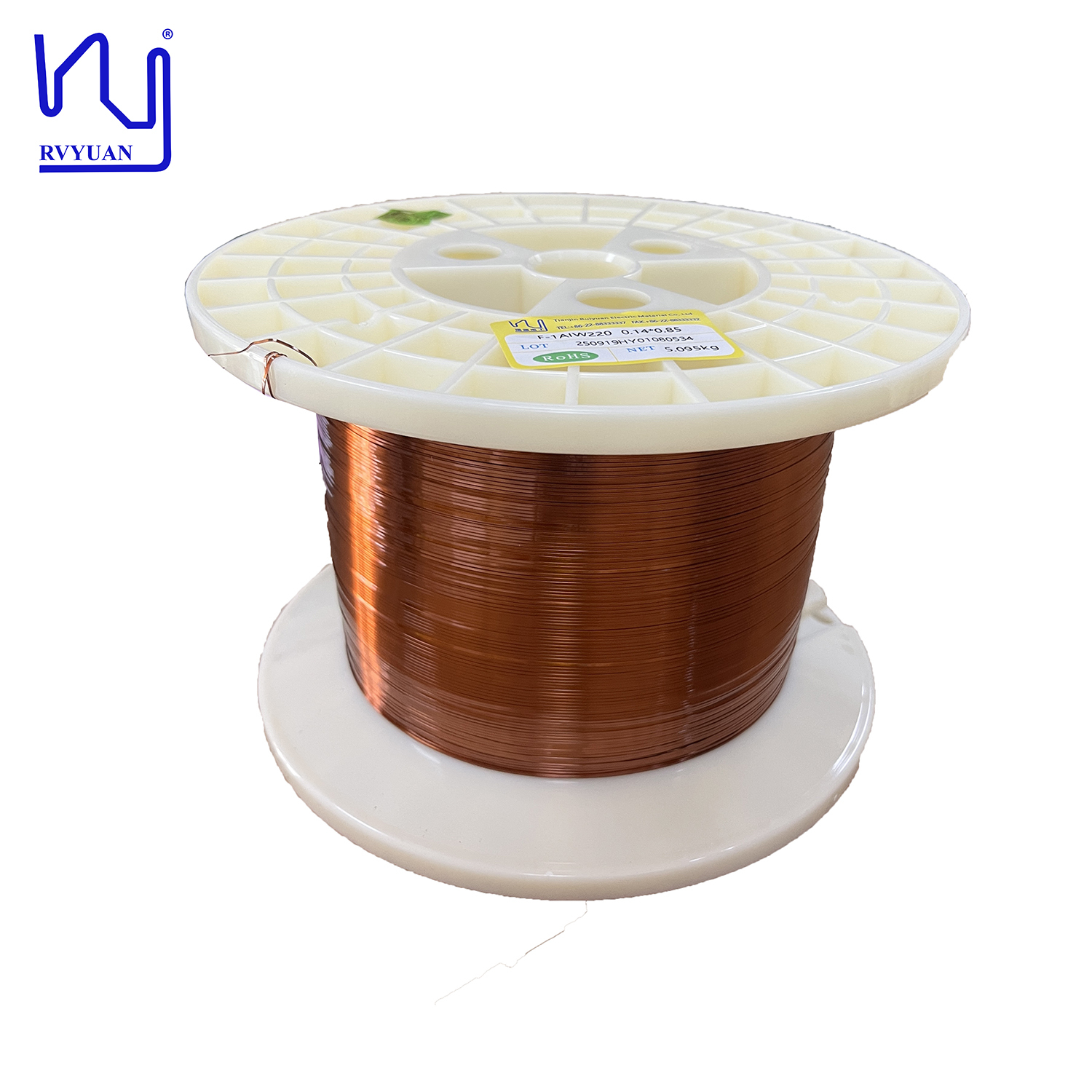

AIW Enameled Flat Copper Wire 2.0mm 3mm 4mm Rectangular Wire

اطلاعات پایه
محل منبع: چین
نام تجاری: RVYUAN
گواهی: IEC/NEMA/JIS/RoHS/ISO
شماره مدل: کلاس 220
مقدار حداقل تعداد سفارش: انواع مختلف با MOQ متفاوت
قیمت: negotiable
جزئیات بسته بندی: قرقره با کارتن
زمان تحویل: 2-15 روز کاری
شرایط پرداخت: T/T
قابلیت ارائه: تقاضای خود را برآورده کنید
اطلاعات تکمیلی
شکل: مستطیل شکل ابعاد هادی (عرض): 2 میلی متر
ضخامت لایه عایق یک طرفه (عرض): 1 میلی متر برنامه های کاربردی: سیم پیچ موتور
درجه حرارت: 220 کلمه کلیدی: سیم مسطح مسطح AIW 2.0mm 3mm 4mm سیم مستطیلی
برجسته کردن:

enameled flat copper wire,rectangular copper wire 4mm,AIW enameled rectangular wire

,

rectangular copper wire 4mm

,

AIW enameled rectangular wire


توضیحات محصول

AIW Enameled Flat Copper Wire 2.0mm 3mm 4mm Rectangular Wire
Insulation enamel is Polyamide Imide coating, with the capability to resist 220℃ temperature. We've successfully developed AIW enameled flat copper wire based on market needs of small size and light weight, degree of dependability, fire-resistance, mechanical and chemical characteristics and in consideration of production efficiency and the upgrading of market competitiveness. It not only has all the advantages of EI enameled flat copper wire, but also is with a better performance compared with the latter in temperature-resistance, grinding-resistance, and degree of stickiness.
Technical Specifications
TEST REPORT
Model SFT-AIW Date 2024-1-8
Size(mm): 0.100 × 2.000 Lot /






Item

conductor dimension

Unilateral insulation

laer thickness

Overall dimension

Dielectric

breakdown

voltage



Pinhole



Conductor resistance



Elongation



Apperance



Flexibility



Adherence

Thermal

shock

Thickness Width   Thickness  Width   Thickness  Width
Unit mm mm mm mm mm mm kv Pcs/m Ω/km 20℃ %

No to be

scratched

No dirt



No crack



No crack



No crack



SPEC

Mid. 0.100 2.000 0.025 0.025
Max 0.109 2.060 0.040 0.040 0.150 2.100   3 93.240
Min 0.091 1.940 0.010 0.010     0.700     30
No. 1 0.104 1.992 0.020 0.013 0.144 2.018 2.680



















0



















85.634



















46















No to be

scratched

No dirt

















Good

















Good

















Good

No. 2             1.968
No. 3             2.250
No. 4             2.458
No. 5             1.976
Ave 0.104 1.992 0.020 0.013 0.144 2.018 2.266
Number of reading 1 1 1 1 1 1 5
Min. reading 0.104 1.992 0.020 0.013 0.144 2.018 1.968
Max. reading 0.104 1.992 0.020 0.013 0.144 2.018 2.680
Range 0.000 0.000 0.000 0.000 0.000 0.000 0.712
Result OK OK OK OK OK OK OK OK OK OK OK OK OK OK
AIW Enameled Flat Copper Wire 2.0mm 3mm 4mm Rectangular Wire 0
