Customizable UEW 0.2mm * 40 Strands Twisted Enameled Copper Silk Covered Litz Wire

اطلاعات پایه
محل منبع: چین
نام تجاری: RVYUAN
گواهی: ISO9001/ISO14001 /UL/SGS
شماره مدل: urStc
مقدار حداقل تعداد سفارش: 10 کیلوگرم
قیمت: negotiable
جزئیات بسته بندی: قرقره با کارتن
زمان تحویل: 2-15 روز کاری
شرایط پرداخت: T/ T/ PayPal
قابلیت ارائه: تقاضای خود را برآورده کنید
اطلاعات تکمیلی
قطر: 0.2 میلی متر دما: 155
گواهی: IEC/NEMA/JIS/RoHS/ISO هادی: مس
رشته: 40 ولتاژ خرابی: حداقل 1600
مواد پوشش: نایلون نام محصول: سیم لیتز با پوشش ابریشم مسی میناکاری شده تابیده شده UEW 0.2 میلی متر * 40 رشته
کلمه کلیدی: سیم لیتز با پوشش ابریشم مسی میناکاری شده تابیده شده UEW 0.2 میلی متر * 40 رشته
برجسته کردن:

customizable enameled copper litz wire,40 strands twisted litz wire,0.2mm silk covered litz wire

,

40 strands twisted litz wire

,

0.2mm silk covered litz wire


توضیحات محصول

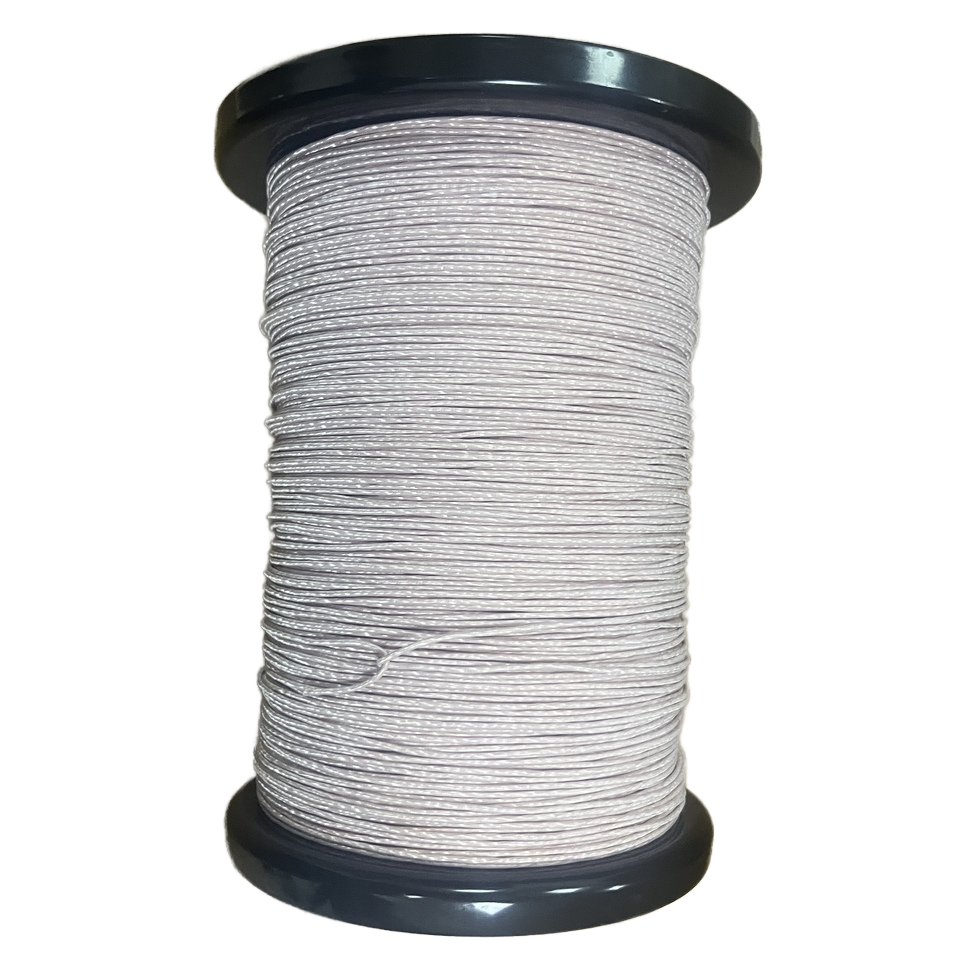

Customizable UEW 0.2mm * 40 Strands Twisted Enameled Copper Silk Covered Litz Wire
This superior conductor features 0.2mm single-strand enameled wire coated with a durable polyurethane layer, ensuring excellent solderability. You can use it with confidence; soldering will be seamless, making it a reliable choice for a wide range of projects. The conductor is composed of 40 strands, combining exceptional flexibility and performance.
Product Specifications
Item Technical requests Test value 1 Test value 2
Single Diameter (mm) 0.216-0.231 0.219 0.223
Conductor diameter (mm) 0.2± 0.003 0.198 0.2
O.D. (mm) Max.1.8 1.57 1.70
Resistance Ω/m (20℃) Max. 0.01443 0.01357 0.01335
Breakdown Voltage V 1600 3800 3600
Pitch mm 33 ±7
No. of strands 40
Customizable UEW 0.2mm * 40 Strands Twisted Enameled Copper Silk Covered Litz Wire 0
Please send inquiries directly to request more information or quote!
