2USTC 0.2mm Nylon Covered Litz Wire 150 Strands Copper Wire

اطلاعات پایه
محل منبع: چین
نام تجاری: RVYUAN
گواهی: ISO9001/ISO14001 /UL/SGS
شماره مدل: urStc
مقدار حداقل تعداد سفارش: 10 کیلوگرم
قیمت: negotiable
جزئیات بسته بندی: قرقره با کارتن
زمان تحویل: 2-15 روز کاری
شرایط پرداخت: T/ T/ PayPal
قابلیت ارائه: تقاضای خود را برآورده کنید
اطلاعات تکمیلی
قطر: 0.2 میلی متر دما: 155
گواهی: IEC/NEMA/JIS/RoHS/ISO هادی: مس
رشته: 40 ولتاژ خرابی: حداقل 1600
مواد پوشش: نایلون نام محصول: 2USTC 0.2mm با پوشش نایلون سیم لیتز 150 رشته سیم مسی
کلمه کلیدی: 2USTC 0.2mm با پوشش نایلون سیم لیتز 150 رشته سیم مسی
برجسته کردن:

0.2mm nylon litz wire,150 strands copper litz wire,ustc nylon covered wire

,

150 strands copper litz wire

,

ustc nylon covered wire


توضیحات محصول

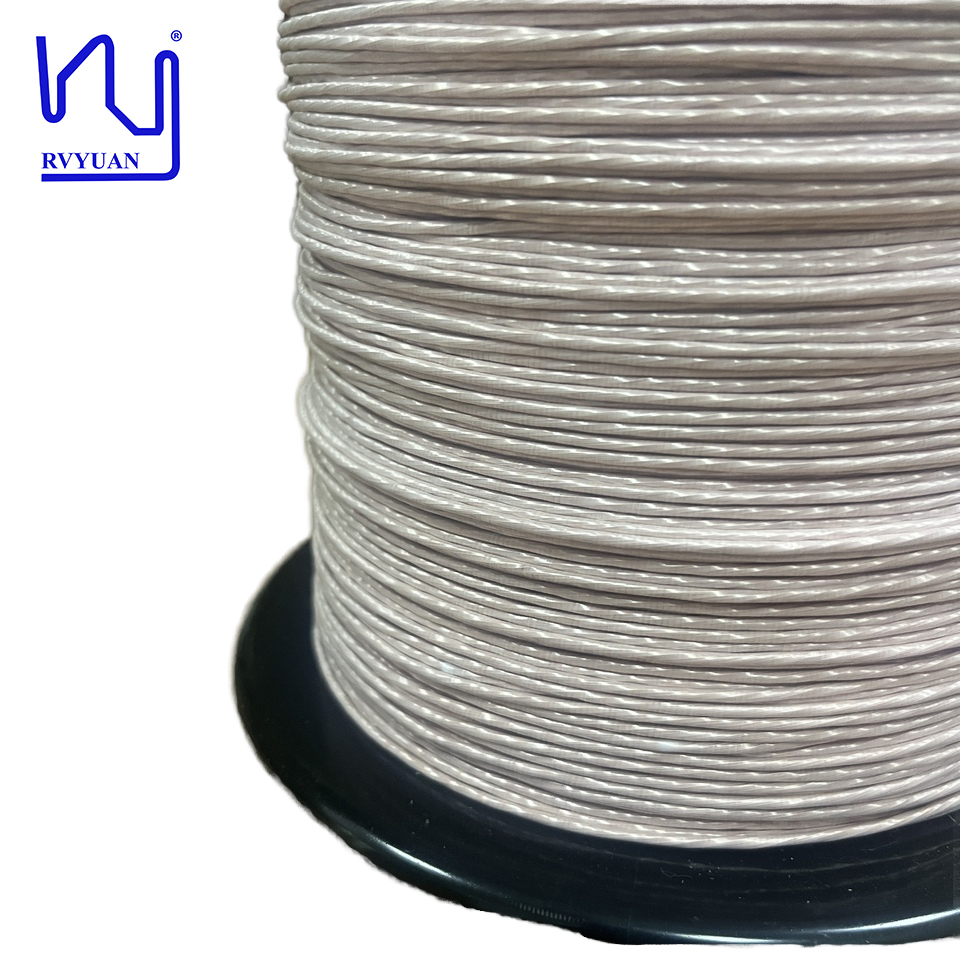

2USTC 0.2mm Nylon Covered Litz Wire 150 Strands Copper Wire

This superior nylon served litz wire features 0.2mm single enameled wire coated with a durable polyurethane, ensuring excellent solderability. You can use it with confidence; soldering will be seamless, making it a reliable choice for a wide range of projects. The litz wire is composed of 40 strands, combining exceptional flexibility and performance.

The outer layer is wrapped in high-quality nylon, which not only enhances durability but also gives it a stylish look. If you prefer other materials, we also offer polyester and silk wrapping options, allowing you to choose the most suitable material according to your needs.

Product Specifications
Item Technical requests Test value 1 Test value 2
Single Diameter (mm) 0.216-0.231 0.219 0.223
Conductor diameter (mm) 0.2± 0.003 0.198 0.2
O.D. (mm) Max.1.8 1.57 1.70
Resistance Ω/m (20℃) Max. 0.01443 0.01357 0.01335
Breakdown Voltage V 1600 3800 3600
Pitch mm 33 ±7
No. of strands 40
2USTC 0.2mm Nylon Covered Litz Wire 150 Strands Copper Wire 0
