4KV PET Film 0.2mmx80 Copper Conductor Taped Litz Wire

اطلاعات پایه
محل منبع: چین
نام تجاری: Rvyuan
گواهی: IEC/NEMA/JIS/RoHS/ISO
شماره مدل: سیم لیتز چسبانده شده
مقدار حداقل تعداد سفارش: 20 کیلوگرم
قیمت: negotiable
جزئیات بسته بندی: قرقره با کارتن
زمان تحویل: 2-15 روز کاری
شرایط پرداخت: مذاکره
قابلیت ارائه: تقاضای خود را برآورده کنید
اطلاعات تکمیلی
نام: فیلم 4KV PET 0.2mmx80 هادی مسی با سیم Litz نواری گواهی: ISO9001/ISO14001/UL/SGS
قطر: 0.2 میلی متر هادی: مس
عایق: فیلم PI درجه حرارت: 155
کلمه کلیدی: فیلم 4KV PET 0.2mmx80 هادی مسی با سیم Litz نواری تعداد رشته ها: 80
برجسته کردن:

4KV PET Film Litz Wire,0.2mm Copper Conductor Wire,Taped Litz Wire with PET

,

0.2mm Copper Conductor Wire

,

Taped Litz Wire with PET


توضیحات محصول

4KV PET Film 0.2mmx80 Copper Conductor Taped Litz Wire
Product Description

4KV PET Film 0.2mmx80 Copper Conductor Taped Litz Wire

What is PET film?

Polyester film, commonly known as PET film, is a plastic film made of polyethylene terephthalate. This versatile material is available in a variety of thicknesses, widths, and transparencyes, making it suitable for a wide range of applications. PET film possesses excellent physical, mechanical, optical, thermal, electrical, and chemical properties, making it popular in industries such as packaging, electronics, and insulation.

Item No. Our diameter of single wire mm Conductor diameter mm Overall dimension mm Resistance Ω /m Breakdown voltage V Overlap%
Tech requirement 0.213-0.227 0.2±0.003 Max.2.84 ≤0.007215 4000 Min. 50
Sample 1 0.220-0.223 0.198-0.2 2.46-2.73 0.006814 11700 53
Product Images

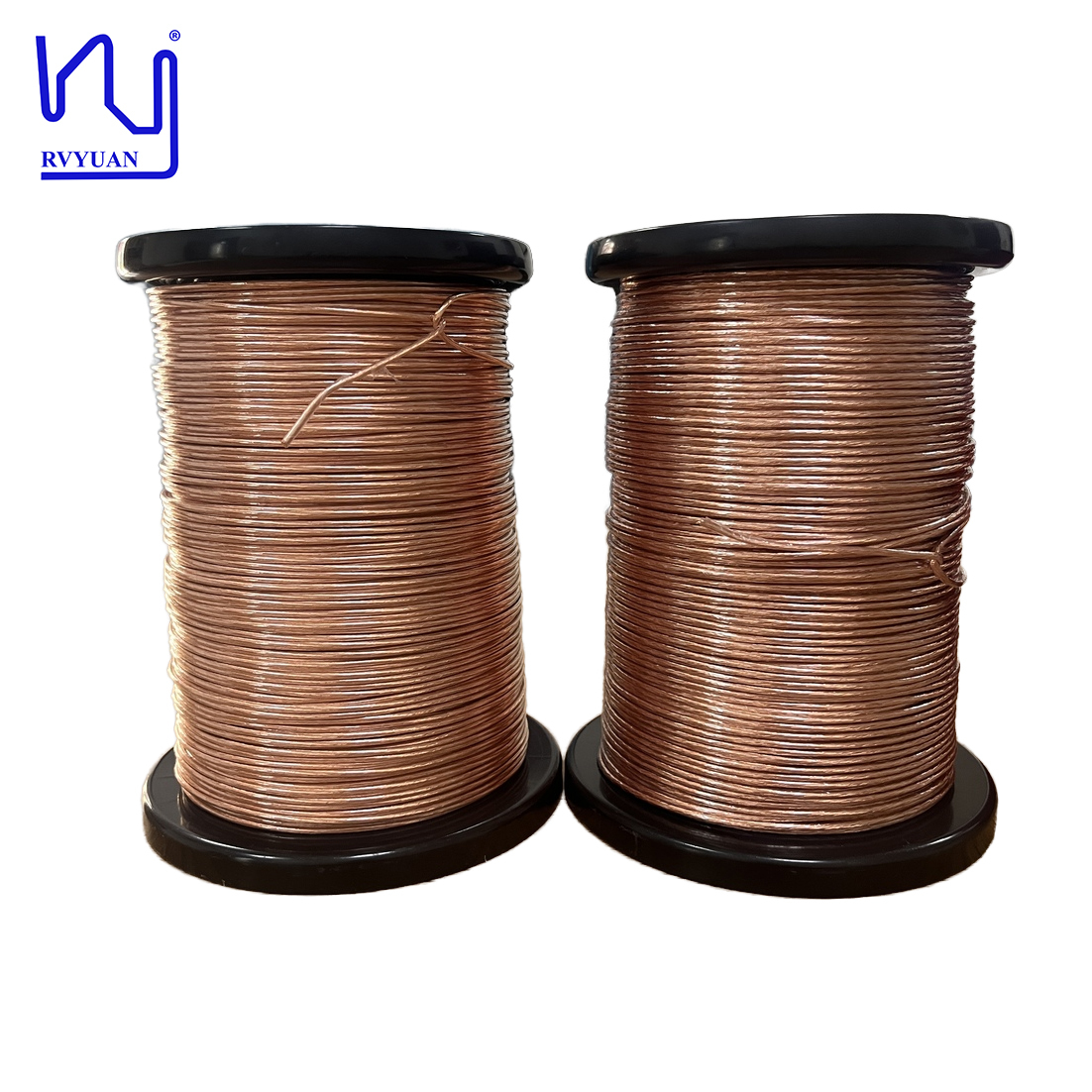

4KV PET Film 0.2mmx80 Copper Conductor Taped Litz Wire 0
