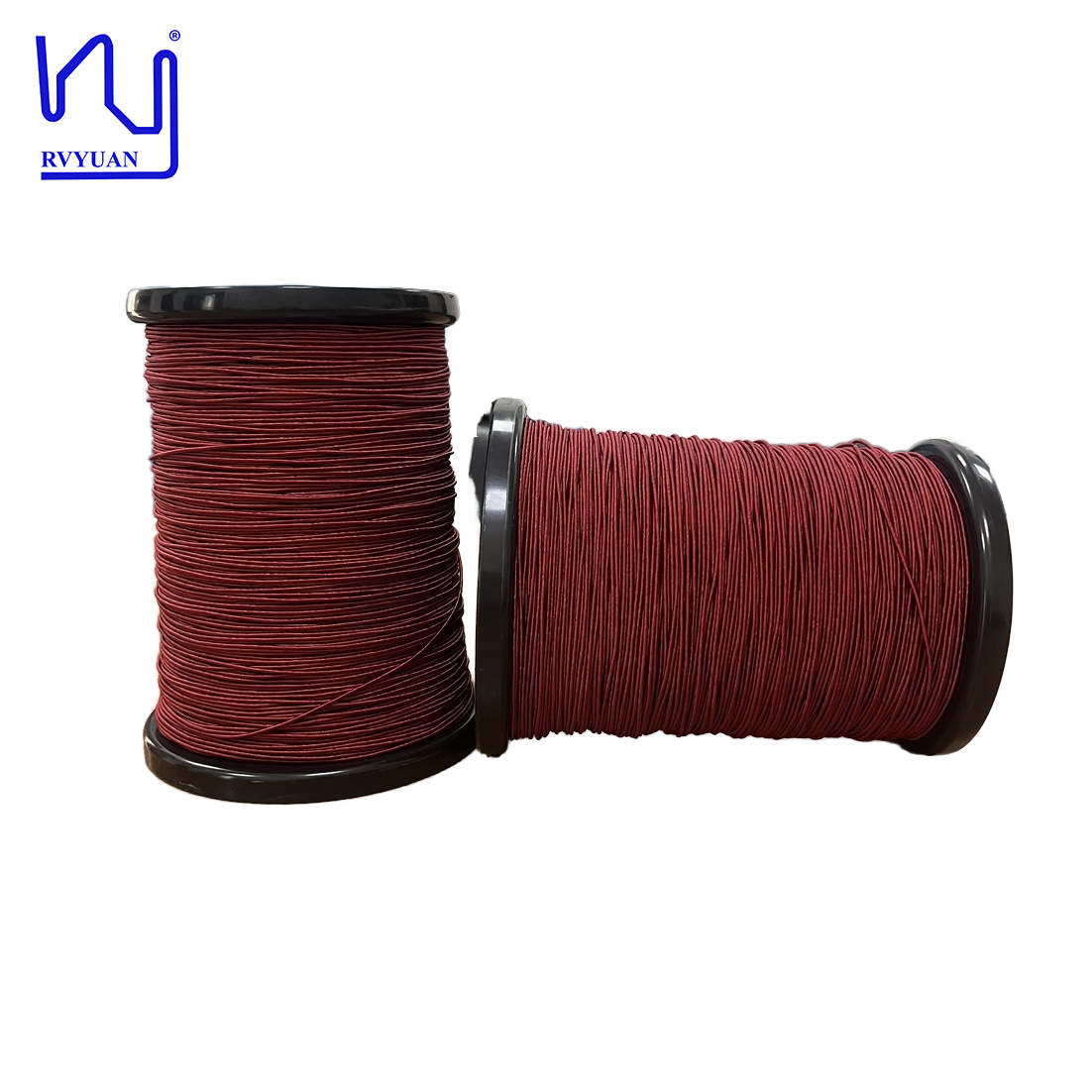

High Frequency Stranded 0.08mm 27 Strands Silk Covered Litz Wire

اطلاعات پایه
محل منبع: چین
نام تجاری: RVYUAN
گواهی: ISO9001/ISO14001 /UL/SGS
شماره مدل: urStc
مقدار حداقل تعداد سفارش: 10 کیلوگرم
قیمت: negotiable
جزئیات بسته بندی: قرقره با کارتن
زمان تحویل: 2-15 روز کاری
شرایط پرداخت: T/ T/ PayPal
قابلیت ارائه: تقاضای خود را برآورده کنید
اطلاعات تکمیلی
قطر: 0.08 میلی متر دما: 155
گواهی: IEC/NEMA/JIS/RoHS/ISO هادی: مس
رشته: 270 ولتاژ خرابی: حداقل .1100
مواد پوشش: نایلون نام محصول: سیم لیتز با روکش ابریشم 27 رشته ای 0.08 میلی متری فرکانس بالا
کلمه کلیدی: سیم لیتز با روکش ابریشم 27 رشته ای 0.08 میلی متری فرکانس بالا
برجسته کردن:

silk covered litz wire,high frequency litz wire,27 strands litz wire

,

high frequency litz wire

,

27 strands litz wire


توضیحات محصول

High Frequency Stranded 0.08mm 27 Strands Silk Covered Litz Wire
Silk covered Litz wire is widely used in transformer windings, wireless chargers for mobile phones, and electric vehicle charging stations. In transformers, its flexibility and durability enable efficient energy transfer and heat dissipation. In wireless chargers, the wire's stability and robustness ensure reliable performance and a long service life; while in electric vehicle charging stations, it supports high-frequency operation, thereby improving charging efficiency and safety.
Product Specifications
Item No. Our diameter of single wire mm Conductor diameter mm Overall dimension mm Resistance Ω/m Breakdown voltage V Pitch
Tech requirement 0.087-0.095 0.08±0.003 Max.2.04 ≤0.01398 ≥1100 29±5
Sample 1 0.89-0.091 0.078-0.08 1.7-1.82 0.01282 2700
High Frequency Stranded 0.08mm 27 Strands Silk Covered Litz Wire 0
