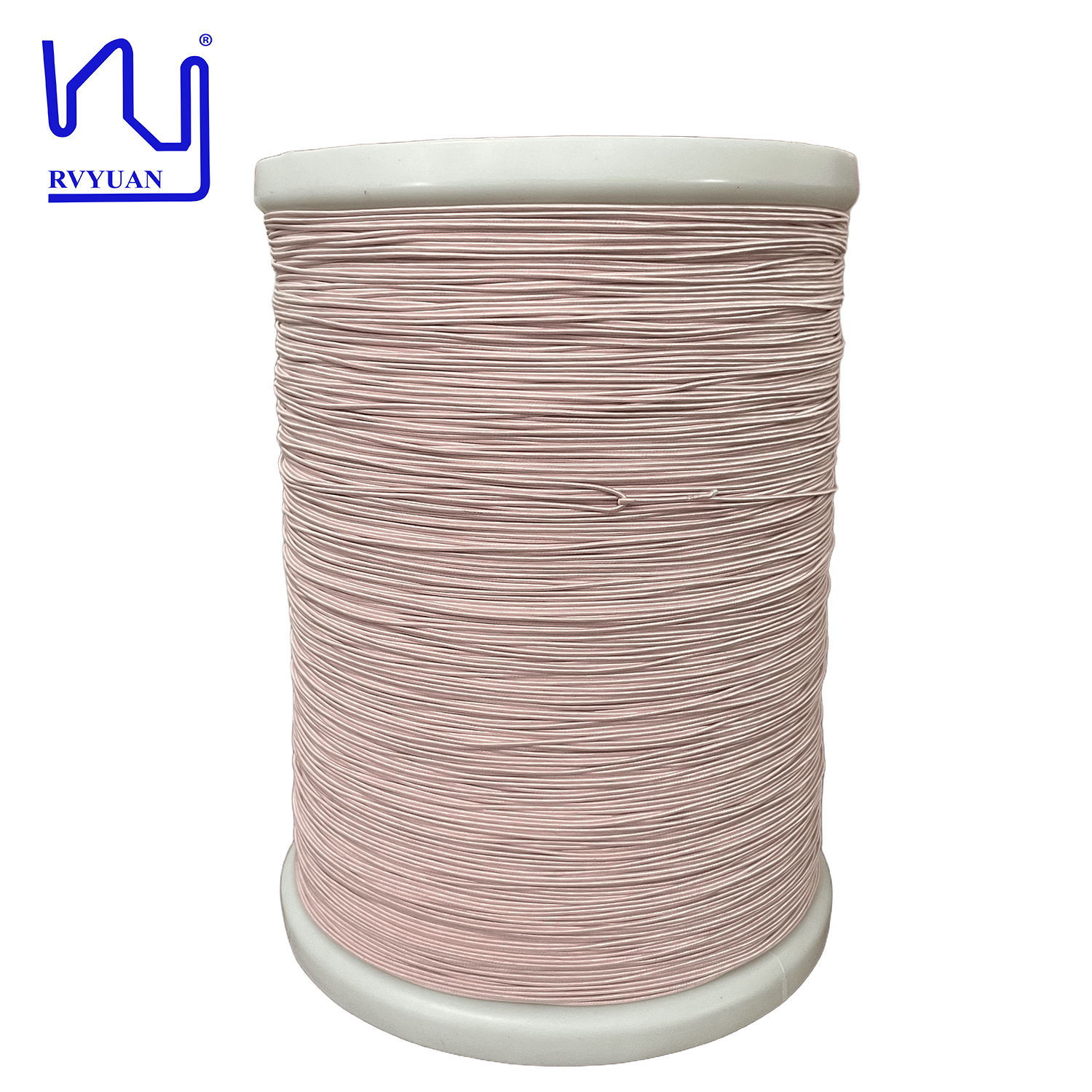

2USTC-F Stranded Wire 0.05mm x225 Strands Silk Covered Litz Wire

اطلاعات پایه
محل منبع: چین
نام تجاری: RVYUAN
گواهی: ISO9001/ISO14001 /UL/SGS
شماره مدل: USTC
مقدار حداقل تعداد سفارش: 10 کیلوگرم
قیمت: negotiable
جزئیات بسته بندی: قرقره با کارتن
زمان تحویل: 2-15 روز کاری
شرایط پرداخت: T/T/ Paypal
قابلیت ارائه: خواسته خود را برآورده کنید
اطلاعات تکمیلی
قطر: 0.05 میلی متر دما: 155
گواهی: IEC/NEMA/JIS/RoHS/ISO هادی: مس
رشته ها: 225 ولتاژ شکست: حداقل 950
مواد پوشش: نایلون نام محصول: 2USTC-F سیم رشته ای 0.05mm x225 رشته سیم لیتز با پوشش ابریشم
کلمه کلیدی: 2USTC-F سیم رشته ای 0.05mm x225 رشته سیم لیتز با پوشش ابریشم
برجسته کردن:

silk covered litz wire,0.05mm stranded litz wire,225 strands ustc litz wire

,

0.05mm stranded litz wire

,

225 strands ustc litz wire


توضیحات محصول

2USTC-F Stranded Wire 0.05mm x225 Strands Silk Covered Litz Wire

Silk covered litz wire is a specialized wire designed for high-performance applications in transformer winding, wireless charge winding, audio cable manufacturing, and more. This custom silk covered litz wire was developed for an Indian client specifically for transformer winding applications.

This litz wire features a nylon yarn outer wrapping, with alternative materials such as polyester yarn available for clients with different material preferences. We also offer exquisite natural silk coverings for high-end audio cable applications, with inner conductors typically made from high-purity copper or silver.

Technical Specifications
Item No. Wire Diameter (mm) Conductor Diameter (mm) Overall Dimension (mm) Resistance (Ω/m) Breakdown Voltage (V) Pitch
Tech Requirement 0.055-0.069 0.05±0.003 Max. 1.42 ≤0.04551 ≥950 27±3
Sample 1 0.058 0.048 0.98 0.03858 2400
Sample 2 0.060 0.050 1.06 0.03819 2500
2USTC-F Stranded Wire 0.05mm x225 Strands Silk Covered Litz Wire 0
